TP gasoline / RD diesel series

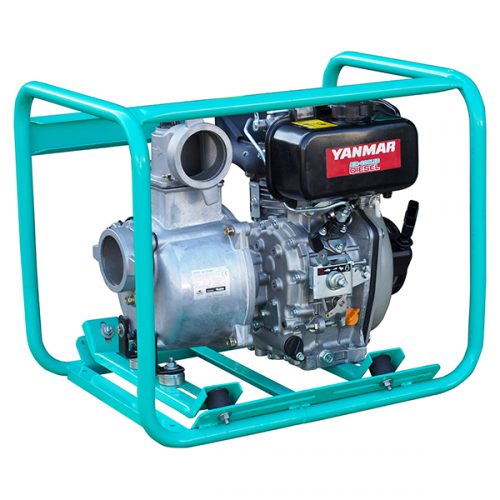

RD 55
RD 55 is suitable for transfers of clear and moderately charged water by accepting particles up to 6 mm. This pump is equipped with professional high performance YANMAR motor, also able to satisfy a more sustained use. High-performance materials such as ceramic carbon mechanical trim and die-cast aluminum pump body die-cast aluminum provide excellent reliability and longevity.
Technicals characteristics
| Type of pump | Self-priming |
| Ø of the Suction Connector | 75 mm (3″) |
| Ø of the Discharge Connector | 75 mm (3″) |
| Maximum flow rate | 900 L/min |
| Maximum flow rate | 54 m3/H |
| Pressure | 2.8 bar |
| HMT (Height Manometric Total) | 28 m |
| Maximum Suction Height | 8 m |
| Grain size (Ø strainer hole) | 6 mm |
| Mechanical packing | Ceramic carbon |
| Engine | YANMAR – L48 |
| Engine type | 4 Petrol time OHV |
| Fuel | NRGO (Non Road Gas Oil) or Automotive Gas Oil Do not use domestic fuel oil or heating oil |
| Tank capacity | 2.4 L |
| Average autonomy | 2 H 30 |
| Dimension L x W x H | 590 x 460 x 500 mm |
| Dimension packed L x W x H | – |
| Net dry weught | 41 Kg |
| Gross weight packed | 43 Kg |
Standards equipments
- Startup Launcher
- Diesel 4-stroke engine
- Self-priming
- Silicon Carbon Mechanical Trim
- Plastic creole, fittings and collars
Optionnals equipments
- Wheelbarrow Kit (factory option)
- Electric Start + Battery
- Firefighter Fittings
- Viton Seal Kit
