MECA gasoline & diesel series

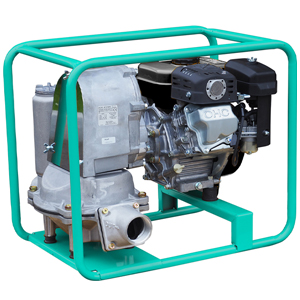

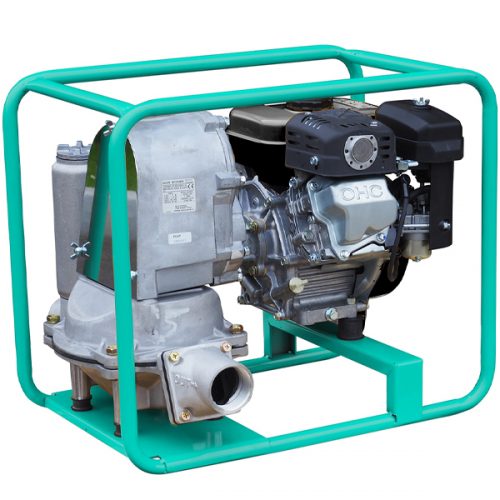

MECA 8/15 EX
The MECA series, equipped with a membrane pump, is capable of conveying water that is highly charged with solid particles up to 25 millimetres. They are perfectly suited for sludge drainage and sumps. Superior quality components and dry self-priming offer excellent resistance and dry operation without damage.
Technicals characteristics
| Type of pump | Self-priming |
| Ø of the Suction Connector | 50 mm (2″) |
| Ø of the Discharge Connector | 50 mm (2″) |
| Maximum flow rate | 125 L/min – 7.5 m3/h |
| Pressure | 1.5 bar |
| HMT (Height Manometric Total) | 15 m |
| Maximum Suction Height | 7.6 m |
| Grain size (Ø strainer hole) | 25 m |
| Engine | WORMS EX13 |
| Engine type | 4 Petrol time OHV |
| Fuel | Unleaded petrol 95 |
| Tank capacity | 2.3 L |
| Average autonomy | 2 h 10 |
| Dimensions L x W x H | 614 x 370 x 510 mm |
| Dimensions packed L x W x H | 700 x 515 x 650 mm |
| Net dry weight | 38 kg |
| Gross weight packed | 40 kg |
Standards equipments
- Startup Launcher
- Safety lack of electronic oil
- 4-stroke petrol engine
- Self-priming
- Steel strainer, fittings and clamps
Optionnals equipments
- Firefighter Fittings
- Service Kit n°2
