TP gasoline / RD diesel series

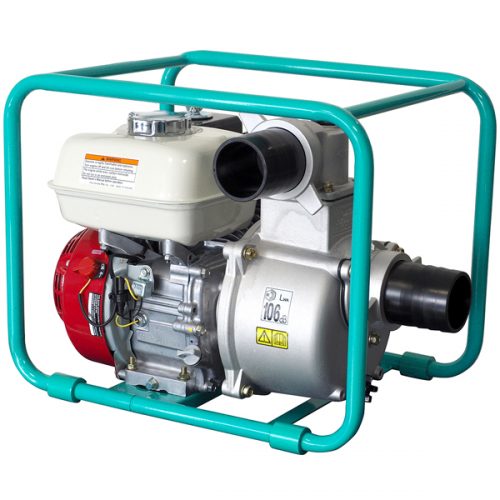

TP 65 H
TP 65 H is suitable for transfers of clear and moderately charged water by accepting particles up to 7 mm. This pump is equipped with high performance professional Robin motor, also able to satisfy a more sustained use. High-performance materials such as ceramic carbon mechanical trim and die-cast aluminum pump body die-cast aluminum provide excellent reliability and longevity.

Technicals characteristics
Type of pump | Self-priming |
Ø of the Suction Connector | 75 mm |
Ø of the Discharge Connector | 75 mm |
Maximum flow rate | 1000 L/min – 60 m3/h |
Pressure | 3.2 bar |
HMT (Height Manometric Total) | 32 m |
Maximum Suction Height | 8 m |
Grain size (Ø strainer hole) | 7.5 mm |
Mechanical packing | Ceramic carbon |
Engine | GX160 – HONDA |
Engine type | 4 Petrol time OHV |
Fuel | Unleaded petrol 95 |
Tank capacity | 3.1 L |
Average autonomiy | 2 h 15 |
Dimensions L x W x H | 527 x 368 x 417 mm |
Dimensions packed L x W x H | 545 x 380 x 440 mm |
Net dry weight | 24.5 Kg |
Gross weight packed | 26.5 Kg |
Standards equipments
- Startup Launcher
- Self-priming
- Ceramic Carbon Mechanical Graniture
- Engine 4 Petrol or diesel time
- Safety lack of electronic oil
- Steel strainer, ball connections and clamps provided
Optionnals equipments
- Firefighter Fittings
- Wheelbarrow Kit (REF. 13)
